IxChariot



Summary - C:\Program Files\Ixia\IxChariot\Tests\Fixe fixe et fixe wifi.tst


Console version 5.40
Console build level 011
Console product type IxChariot Eval
Filename C:\Program Files\Ixia\IxChariot\Tests\Fixe fixe et fixe wifi.tst
Run start time vendredi 10 juin 2005, 18:19:51
Run end time vendredi 10 juin 2005, 18:22:22
Elapsed time 00:02:31
How the test ended Ran to completion
Number of pairs 2


Run Options


End type Run until any pair ends
Reporting type Real-time
Automatically poll endpoints Yes
Polling interval (minutes) 1
Stop run upon initialization failure Yes
Connect timeout during test (minutes) 0
Stop test after this many running pairs fail 1
Collect endpoint CPU utilization No
Validate data upon receipt No
Use a new seed for random variables on every run Yes
Datagram window size (bytes) 1500
Datagram retransmission timeout (milliseconds) 200
Datagram number of retransmits before aborting 50
Receive Timeout (milliseconds) 10000
Time To Live (Hops) 32


Test Setup (Console to Endpoint 1)


Group/ Pair Console Knows Endpoint 1 Console Protocol Console Service Quality Pair Comment
All Pairs











Pair 1
192.168.1.115
TCP
n/a
Fadma  fixe Marlene Wi-Fi




Pair 2
192.168.1.115
TCP
n/a
Fadma fixe Marlène fixe









Test Setup (Endpoint 1 to Endpoint 2)






Group/
Pair
Endpoint 1 Knows Endpoint 2 (Setup)
Endpoint 2 Setup Protocol




All Pairs








Pair 1
192.168.2.108
TCP




Pair 2
192.168.1.103
TCP









Test Execution (Endpoint 1 to Endpoint 2)






Group/
Pair
Endpoint 1
Endpoint 2
Network Protocol
Service Quality
Script/Stream Name




All Pairs














Pair 1
192.168.1.115
192.168.2.108
RTP


G.711u




Pair 2
192.168.1.115
192.168.1.103
RTP


G.711u









Throughput






Group/
Pair
Average
(Mbps)
Minimum
(Mbps)
Maximum
(Mbps)
Throughput 95% Confidence Interval
Measured Time (secs)
Relative Precision




All Pairs
0,127
0,059
0,065










Pair 1
0,063
0,059
0,065
0,003
150,058
4,027




Pair 2
0,064
0,064
0,064
0,000
150,050
0,004




Totals:
0,127
0,059
0,065

















VoIP






Group/
Pair

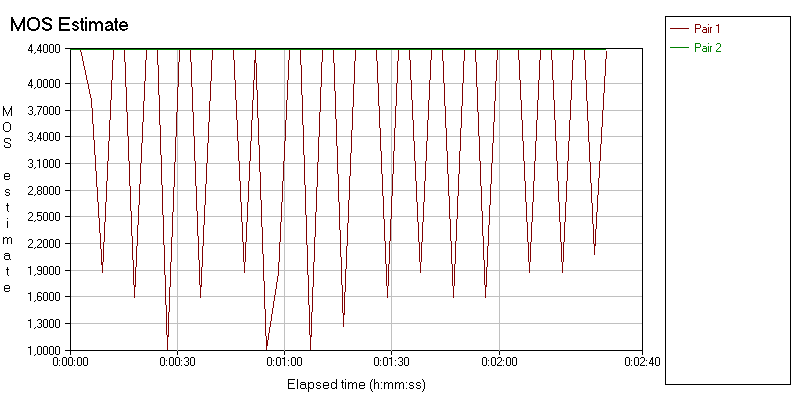

MOS Average
MOS Minimum
MOS Maximum
R-value Average
End-to-End Delay Average (ms)
One-Way Delay Average (ms)
RFC 1889 Jitter Average (ms)
Percent Bytes Lost E1 to E2
Maximum Consecutive Lost Datagrams
Jitter Buffer Lost Datagrams




All Pairs
3,93
1,01
4,38
81,26
56
15
0,060
0,960
2
0




Pair 1
3,48
1,01
4,38
70,88
57,680
17
0,120
1,920
2
0




Pair 2
4,38
4,38
4,38
91,63
55,000
14
0,000
0,000
0
0




Totals:
3,93
1,01
4,38
81,26
56
15
0,060
0,960
2
0











One-Way Delay






Group/
Pair
One-Way Delay Average (ms)
One-Way Delay Minimum (ms)
One-Way Delay Maximum (ms)
Estimated Clock Error (ms)
Maximum Clock Error (ms)
Clock




All Pairs
15
14
20
9,607
25,691






Pair 1
17
16
20
9,607
25,691
Endpoint




Pair 2
14
14
14
9,607
25,691
Endpoint




Totals:
15
14
20
9,607
25,691

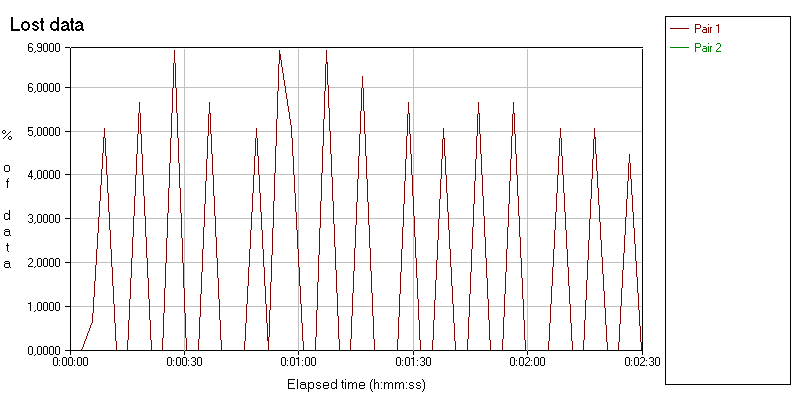

Lost Data






Group/
Pair
Bytes Sent by E1
Bytes Received E2 (Streaming)
Bytes Lost from E1 to E2
Percent Bytes Lost E1 to E2
E1 Throughput
(Mbps)
Maximum Consecutive Lost Datagrams
Measured Time (secs)
Relative Precision




All Pairs
2 400 000
2 376 960
23 040
0,960


2








Pair 1
1 200 000
1 176 960
23 040
1,920
0,064
2
150,058
4,027




Pair 2
1 200 000
1 200 000
0
0,000
0,064
0
150,050
0,004




Totals:
2 400 000
2 376 960
23 040
0,960


2



















Jitter






Group/
Pair
RFC 1889 Jitter Average (ms)
RFC 1889 Jitter Minimum (ms)
RFC 1889 Jitter Maximum (ms)

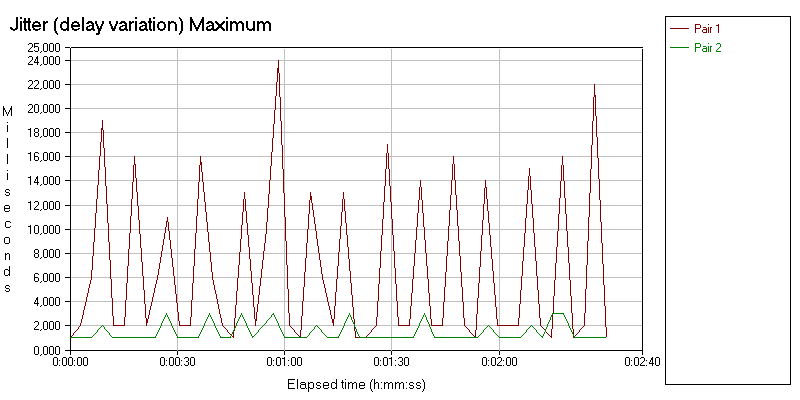

Jitter (delay variation) Max. (ms)




All Pairs
0,060
0
2
24




Pair 1
0,120
0
2
24




Pair 2
0,000
0
0
3




Totals:
0,060
0
2
24















Datagram (Endpoint 1)






Group/
Pair
Total Datagrams Sent by E1
Duplicate Datagrams Sent by E1
Total Datagrams Received by E1
Duplicate Datagrams Received by E1
Datagrams Lost, E1 to E2




All Pairs
15 000
n/a
n/a
n/a
144




Pair 1
7 500
n/a
n/a
n/a
144




Pair 2
7 500
n/a
n/a
n/a
0




Totals:
15 000
n/a
n/a
n/a
144









Datagram (Endpoint 2)






Group/
Pair
Total Datagrams Sent by E2
Duplicate Datagrams Sent by E2
Total Datagrams Received by E2
Duplicate Datagrams Received by E2
Datagrams Lost, E2 to E1
Datagrams Out of Order




All Pairs
n/a
n/a
14 856
0
n/a
0




Pair 1
n/a
n/a
7 356
0
n/a
0




Pair 2
n/a
n/a
7 500
0
n/a
0




Totals:
n/a
n/a
14 856
0
n/a
0









Endpoint Configuration






Group/
Pair
E1 Operating System
E1 Version
E1 Build Level
E1 Product Type
E2 Operating System
E2 Version
E2 Build Level
E2 Product Type




All Pairs




















Pair 1
Windows XP
6.0
068
Retail (Web-Based)
Windows XP
6.0
068
Retail (Web-Based)




Pair 2
Windows XP
6.0
068
Retail (Web-Based)
Windows XP
6.0
068
Retail (Web-Based)









Raw Data Totals






Group/
Pair
Number of Timing Records
Transaction Count
Bytes Sent by E1
Bytes Received by E1
Measured Time (secs)
Relative Precision




All Pairs
100
100
2 400 000
n/a








Pair 1
50
50
1 200 000
n/a
150,058
4,027




Pair 2
50
50
1 200 000
n/a
150,050
0,004




Totals:
100
100
2 400 000
n/a
